Setting up a Network Attached Storage (NAS) on Windows Server allows for centralized and easily accessible data storage, offering flexibility, scalability, and robust security features. Below is a detailed guide for a minimal installation and configuration, ensuring optimal performance and simplicity.
Step-by-Step Guide to Setting Up Windows Server as NAS
Installing Roles:
- Open Server Manager
Launch the Server Manager from the Windows Server interface. This tool guides you through adding necessary roles and features. - Click Manage
In the top-right corner, click Manage to access the configuration menu. - Add Roles and Features
Select Add Roles and Features from the dropdown to initiate the setup wizard. - Before You Begin
Skip the introduction by clicking Next. - Installation Type
Select Role-Based or Feature-Based Installation and click Next. - Select a Server from the Server Pool

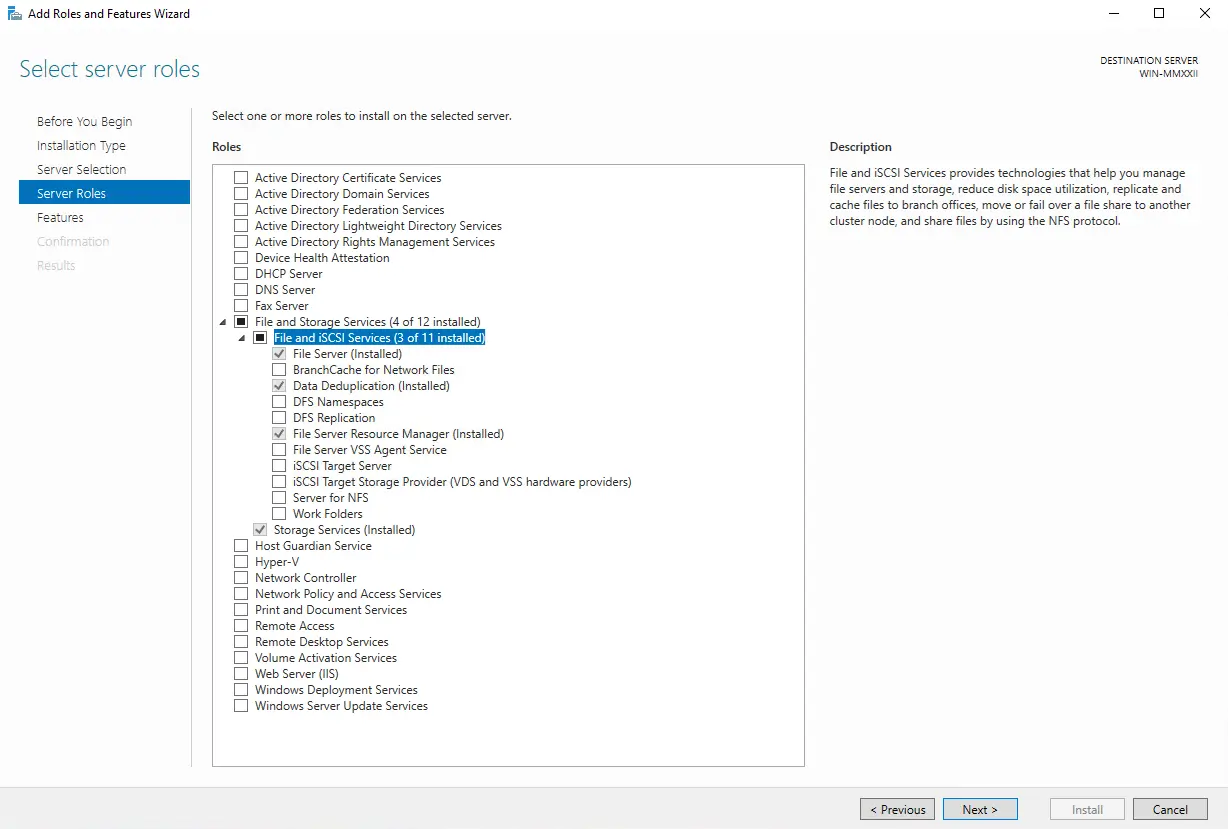

Choose the server you wish to configure and click Next. - Enable File and iSCSI Services
Under File and Storage Services, check the following options:- File Server
- Data Deduplication
- File Server Resource Manager
- Storage Service
Click Next to continue Install Features
- Enable Enhanced Storage
Check the Enhanced Storage feature to optimize disk performance and management. - Enable Multipath I/O
Enable Multipath I/O to improve storage reliability by allowing multiple data paths. - Enable Remote Differential Compression
Check Remote Differential Compression to enhance data synchronization efficiency across the network. - Click Install
Review your selections and click Install to proceed. - Reboot the Server
Restart the server to apply the configurations.
Configuring File and Storage Services
- Open File and Storage Services
In Server Manager, navigate to File and Storage Services on the left menu. - Create a New Share
- Select Shares and then click New Share.
- Choose SMB Share – Advanced and click Next.
- Choose a Storage Location
Select the location for storing shared files and click Next. - Configure Share Name and Description
Enter the share name and an optional description, then click Next. - Enable Advanced Options
- Enable Access-Based Enumeration.
- Allow Caching of Share for offline access.
- Enable Encrypt Data Access for secure storage.
- Set Custom Permissions
- Configure permissions to define user access.
- Add the specific client user(s) authorized to access the file server.
- Retain Everyone (Read) access if macOS client compatibility is required.
- Example Permissions
- Add Administrator to the permission entries list for administrative control.
- Complete Setup
Click Apply and Finish to finalize the configuration.
Access Your NAS
Use the following format to access the NAS: \\This-Server-IP-Address\Share-Name\
Configuring Advanced SMB Features via PowerShell
To optimize SMB performance and enable advanced features for your Windows Server NAS, you can execute the following PowerShell commands with Administrator privileges:
Enable-WindowsOptionalFeature -Online -FeatureName SMBDirect
Set-SmbServerConfiguration -EnableMultiChannel $true
Set-SmbClientConfiguration -EnableMultiChannel $true
Set-NetOffloadGlobalSetting -NetworkDirect EnabledExplanation of Each Command
- Enable-WindowsOptionalFeature -Online -FeatureName SMBDirect
This command enables the SMB Direct feature, which utilizes RDMA (Remote Direct Memory Access) for high-performance, low-latency network communication. It significantly enhances data transfer speeds, especially useful for large file operations or heavy workloads. - Set-SmbServerConfiguration -EnableMultiChannel $true
This command enables SMB Multichannel on the server. SMB Multichannel allows multiple network connections between the server and clients, improving throughput and providing redundancy for high availability. - Set-SmbClientConfiguration -EnableMultiChannel $true
Similar to the server-side configuration, this enables SMB Multichannel on the client, ensuring both ends of the connection support simultaneous multi-path data transfers. - Set-NetOffloadGlobalSetting -NetworkDirect Enabled
This command enables Network Direct, which ensures that network adapters supporting RDMA offload data transfers to the hardware. This reduces CPU usage and boosts overall system performance for data-heavy tasks.
By enabling these features, your NAS server will achieve improved performance, reliability, and efficiency for SMB file sharing in high-demand network environments.
Conclusion
Following this guide, you can transform your Windows Server into a functional and efficient NAS. The setup includes essential features like data deduplication, enhanced storage management, and custom permissions to cater to specific needs. After rebooting, your NAS will be fully operational and ready for network integration.
