Using RouterOS NetInstall to Repair MikroTik RouterOS Firmware

Introduction

MikroTik routers are known for their reliability and performance. However, like any other networking device, they can sometimes experience software corruption, boot failures, or misconfigurations. When this happens, the RouterOS firmware may need to be repaired or reinstalled. This is where RouterOS NetInstall comes in.

NetInstall is a specialized tool provided by MikroTik that allows users to reinstall RouterOS on a device that is failing to boot properly. It is particularly useful for situations where a router is unresponsive or stuck in a boot loop. This guide will walk you through the steps to use NetInstall effectively to repair your MikroTik router.

What is MikroTik NetInstall?

NetInstall is a Windows-based utility that enables users to reinstall or upgrade RouterOS on MikroTik devices. It can be used to recover a malfunctioning router by reinstalling the firmware via Ethernet. The process erases all previous configurations, making it ideal for troubleshooting stubborn issues.

When Should You Use NetInstall?

You may need to use NetInstall in the following cases:

• The router is stuck in a boot loop.
• RouterOS is corrupted and won’t start.
• The router’s login credentials are lost, and a factory reset is required.
• The device does not respond to normal reset methods.
• Upgrading or downgrading RouterOS when conventional methods fail.

Requirements for NetInstall

Before starting the NetInstall process, ensure you have the following:

• A Windows PC or laptop.
• An Ethernet cable.
• A MikroTik router that needs repair.
• The latest NetInstall tool from the MikroTik website.
• The appropriate RouterOS firmware for your router model.
• A direct Ethernet connection between your PC and the router.

Step-by-Step Guide to Using NetInstall

Step 1: Download and Install NetInstall

1. Visit the MikroTik downloads page.
2. Download the latest version of NetInstall.
3. Extract the downloaded file and run netinstall.exe as an administrator.

Step 2: Download the Correct RouterOS Firmware

1. On the same download page, find the RouterOS firmware that matches your router model.
2. Download the .npk file.
3. Save it in the same folder where NetInstall is extracted.

Step 3: Prepare the Router for NetInstall

1. Power off the MikroTik router.
2. Connect an Ethernet cable from your PC to the Ethernet port 1 of the router.
3. Press and hold the Reset button on the router.
4. While holding the reset button, power on the router.
5. Continue holding the reset button until the device appears in the NetInstall window.

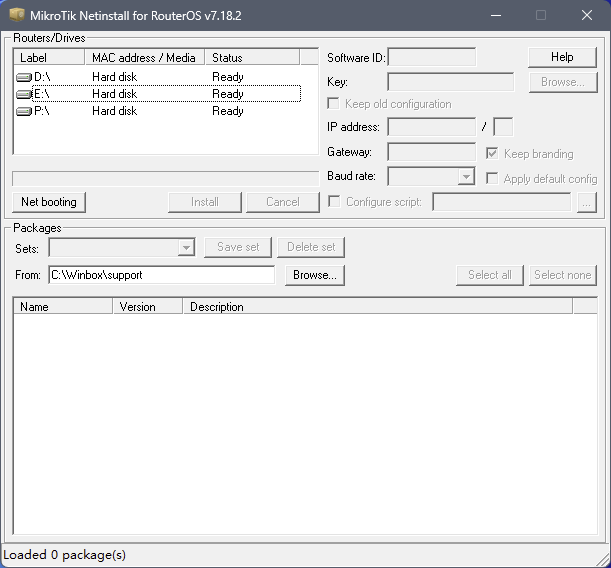

Step 4: Configure NetInstall

1. Launch NetInstall on your Windows PC.
2. In the NetInstall window, select the network interface that is connected to the router.
3. Wait for the router to appear in the list of detected devices.
4. Select the router and choose the RouterOS firmware you downloaded earlier.
5. Click Install to start the reinstallation process.

Step 5: Wait for Installation to Complete

1. The installation process will take a few minutes.
2. Once completed, the router will reboot automatically.
3. Disconnect the Ethernet cable and reconnect to the router’s network.

Step 6: Configure the Router

1. Access the router using WinBox or a web browser.
2. Restore or set up your configurations from scratch.
3. Update RouterOS to the latest stable version (if needed).

Troubleshooting Common Issues

Router Not Detected in NetInstall

• Ensure your PC is using a static IP (e.g., 192.168.88.2).
• Disable firewalls and antivirus software temporarily.
• Try using a different Ethernet cable or network adapter.
• Make sure the reset button is held correctly during boot.

Installation Fails or Freezes

• Restart both the PC and router.
• Ensure you are using the correct firmware for your model.
• Use a different version of NetInstall.
• Try using another Windows PC.

Router Still Not Booting After NetInstall

• Repeat the NetInstall process.
• Try an older version of RouterOS.
• If the problem persists, contact MikroTik support.

Conclusion

RouterOS NetInstall is an essential tool for recovering MikroTik routers that have firmware issues. Whether your router is stuck in a boot loop or unresponsive, NetInstall allows you to reinstall the operating system and restore functionality. By following this guide, you can efficiently repair your MikroTik device and get it back to optimal performance.
